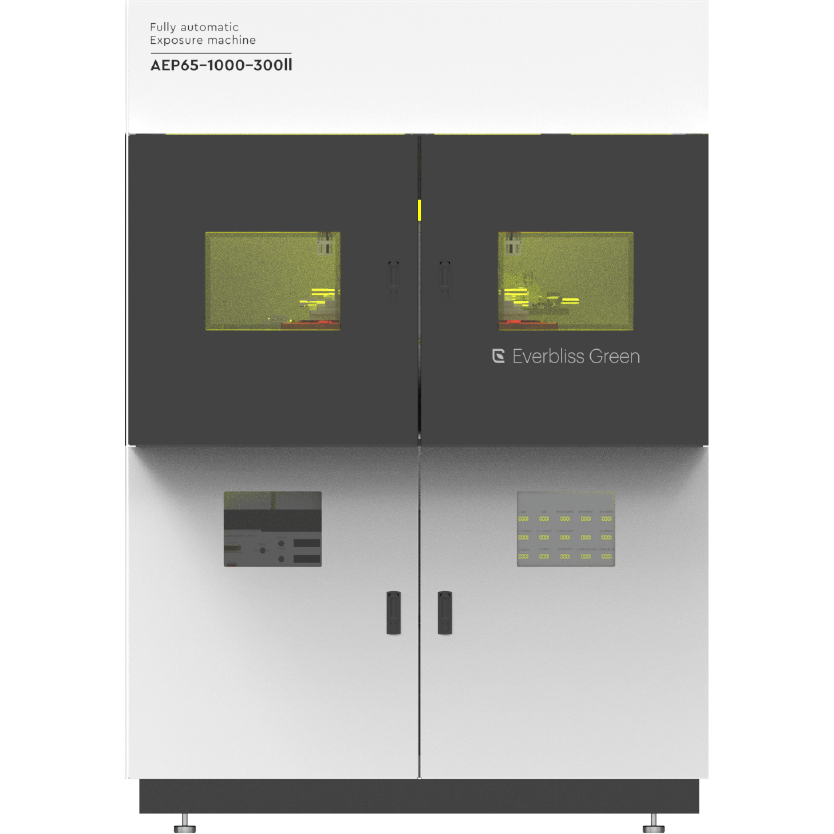

Consistent Machine Series-Fully Automatic Exposure Machine

Consistent Machine Series-Fully Automatic Exposure Machine

Regular price
/

Auto Exposurer 3", 4", 5", 6" 300-CC This equipment is a photomask alignment exposure machine used in semiconductor lithography process.

Consistent Machine Series-Fully Automatic Exposure Machine

Auto Exposurer 3", 4", 5", 6" 300-CC

Consistent Machine Series-Fully Automatic Exposure Machine



Auto Exposurer 3", 4", 5", 6" 300-CC This Equipment
A photomask alignment exposure machine used in semiconductor lithography.


Function: 1:1 copy the pattern of the mask to the photoresist film on the wafer surface with the UV parallel light source.

■ Equipment Specifications :

  • Exposure light source, mask line width replication capability, I-line positive photoresist 1um thickness,
    hard contact, 1um~2um,
    proximity 3um~5um.



■ Align the imaging system:

  • Automatic alignment ability, the align key with clear geometric shape can be identified within 5um.



■ Productivity :

  • For the alignment process, the exposure time is 3 seconds, and the mechanical capacity is 250 to 300 pieces per hour
    (without considering the material variability).
  • No alignment, only exposure process, exposure time of 3 seconds, mechanical capacity of 280~360 pieces per hour
    (without considering material variability and unloading).



■ External Dimensions Weight:

  • W: 1600 x D1600 x H2400mm



■ Weight :

  • Weight about 1600kg
