LED exposure machine

LED exposure machine

Regular price

The intensity of the light source varies according to the selected wavelength and beam size and shape.

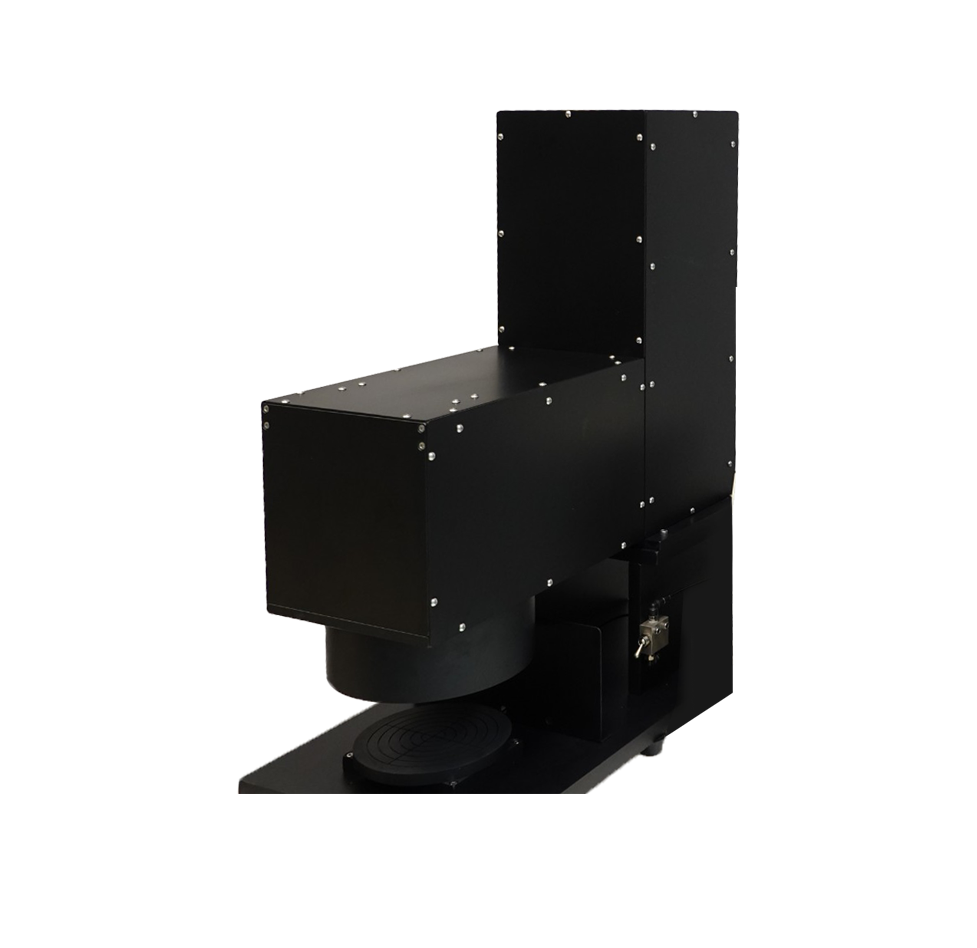

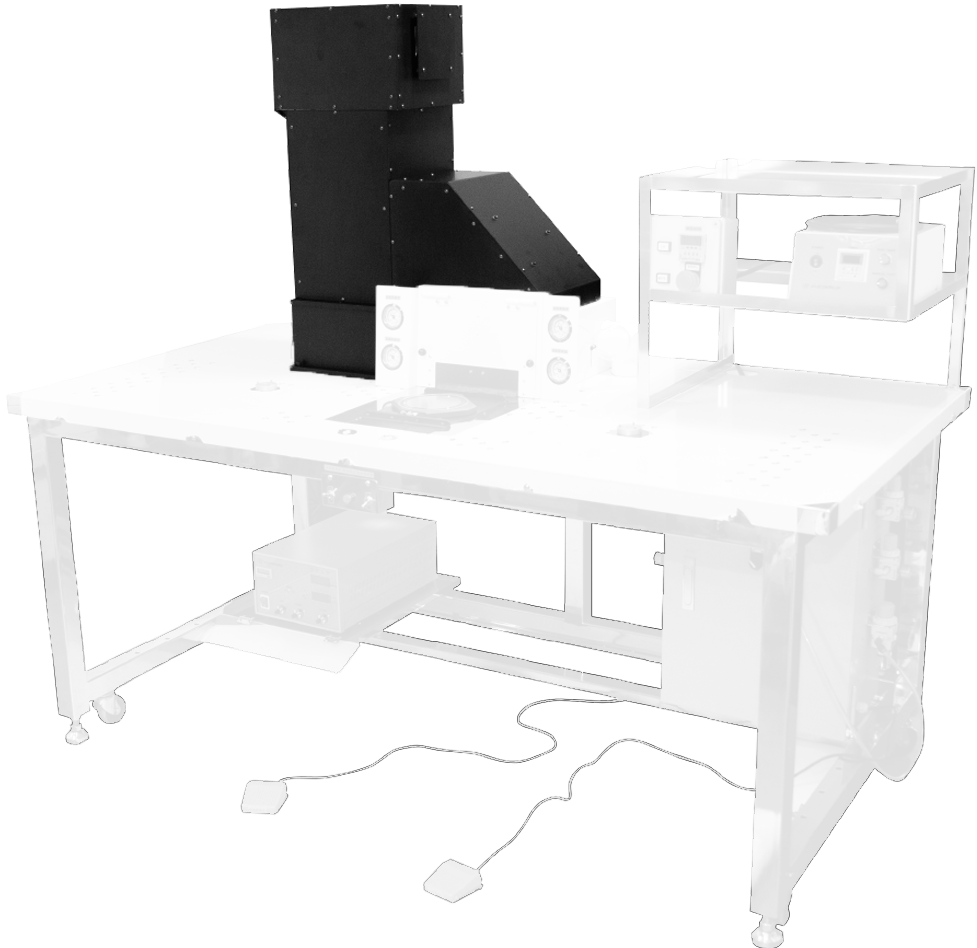

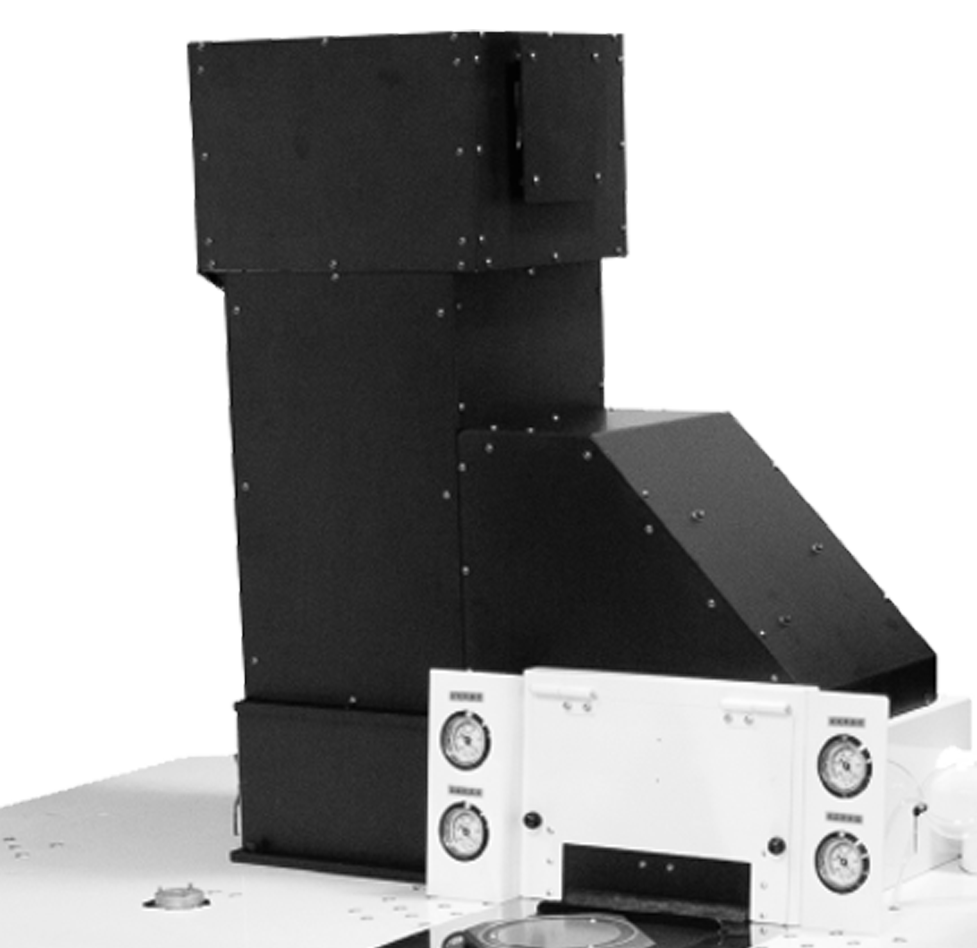

LED Exposure Machine


LED Exposure Machine

Machine Name ModelUV LED

■ Exposure of light sources :

  • The I-line output intensity is about 30~40mW/cm2, and the
    uniformity is within plus or minus 5%. The parallel half angle of
    the light source is about 1.5~3 degrees depending on the
    diameter of the light outlet.

■ Alignment Imaging System :

  • Industrial microscope 30/10x two magnification switchable zoom


■ Productivity :

  • Alignment process, (according to the operator's proficiency), familiar
    with the operation of the operator, about 200 pieces per hour
    (according to the operator's proficiency)


■ External dimensions :

  • W: 1600  x L. 900 x H. 1250 mm


■ Weight :

  • Weight about 140kg
